Flex 140BY.BXL Bay Fireplace Insert
Enjoy an alluring flame from any angle you look at it.
The Bay Fireplace Insert is designed for single room installation and features three open sides that enable the hypnotic flame to be viewed from the front and both left and right sides, providing an alluring focal point from multiple vantage points.
The Flex Bay fireboxes are ideal for commercial spaces like restaurants, bars and cafes, and residential settings where a stunning centrepiece is needed.

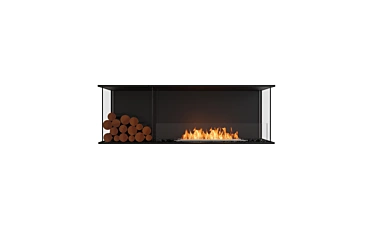

The Flex 140BY.BXL comes with a Decorative Box on the left-hand side. The design is fitted with a glass panel that divides the box and the Firebox and creates an attractive streamlined look. Instantly transform any wall into a feature, indoors or out, with a stylish, clean-lined Flex Firebox.
One of the longest flames available in the Flex Series is created by using 3 of our ever-popular XL900 Burners. With an overall heating capacity of 180m2 this appliance is best suited to large open spaces - think hotel lobby, large open plan restaurants.
Each burner holds 9L of fuel, and can deliver a stunning flame for up to 13 hours.
Configure & Buy
Buy online and get it delivered to your door.Inspiration
Key Features
Application
Indoor or outdoor single room application. With three open side, view the flame from multiple vantage points.
Colours
Available in black, firebox comes with stainless steel burners and decorative Black Glass Charcoal.
No gas or electricity
No gas, no electricity, no chimney, no venting or external vent cap. 4 fewer General Contractors.
Clean burning
All the fuel is housed within Flex’s self-contained burner so you don’t have to run a gas line or electric wires through your walls. And because e-NRG Bioethanol is clean burning, you don’t need a flue or a chimney
Zero clearance
Self-contained, zero clearance construction allows your Flex fireplace to be framed into wood or metal studs, providing installation freedom and flexibility for builders.
Quick and easy assembly
Requiring virtually no assembly, Flex Fireboxes are designed to be placed into the desired location, safely secured into position, and operated immediately.
Rust proof
Zinc sealed steel construction powder coated with super hi-temp black paint prevents rusting so all fireplaces can be used both indoors or outdoors.
Luxurious finish
Available in a timeless black finish, Flex Fireboxes come with stainless steel burners and black glass charcoal.
Decorative side box
Includes one decorative side box to fill with your chosen noncombustible accessory.
Optional log sets
Eye-catching accessory for the decorative side box. Made from stainless steel with a patina finish, they are available in two different finishes: Brass or Copper.
Wind screen
Included integrated windscreen sits flush behind frame.
Tested world-wide
Our collection has been thoroughly tested against a number of global standards and is O-TL Listed in accordance with UL 1370 in the USA, certified in accordance with EN16647 in Europe and the UK, and satisfies the ACCC Safety Mandate for Australia.
Technical Specifications
Construction
- Weight 196kg [431lb]
- Model Dimensions mm [in] W 3653mm [143.8in] D 365mm [14.4in] H 807mm [31.8in]
- Viewing Area mm [in] W 3560mm [140.2in] D 340mm [13.4in] H 502mm [19.8in]
- Materials Mild Steel & Toughened Glass
- Colours
Accessories
Includes everything you need to easily operate and protect your investment for many years to come.Fuel Efficiency
Volume Capacity
Heats on Average
Minimal Room
Thermal Output
Burn Time
FAQ's
View AllHow to install a TV or AV equipment above an ethanol fireplace?
This design can be achieved as long as the TV is protected. You have 3 possible solutions:
Solution 1: The TV needs a non-combustible mantel/ledge to act as a heat shield
Solution 2: The TV needs to be recessed in a niche
Solution 3: The TV needs to sit back off the level of the flame
Are EcoSmart Fires easy to install?
EcoSmart Fires are designed to be easily installed and operated. Without the need for a flue or pipe connection, EcoSmart Fires are extremely flexible and can be incorporated at any stage of your interior decorating, renovating or building works. For detailed specifications please contact your local distributor.
What is an ethanol fireplace insert?
EcoSmart Fire’s fireplace inserts are ready to install heating appliances that include single or multiple ethanol burners within a designed zero-clearance enclosure. Choose from over 219 single sided, double sided, bay, peninsula, island, and bench fireplace styles at multiple lengths. Unlike gas fireplaces or traditional wood burning fireplaces, EcoSmart Fire’s ethanol fireplace inserts require no venting, no gas line, no electricity - eliminating the need and cost of three sub contractors. Simply secure the ethanol fireplace insert in the framework, finish the surround, and it’s ready for use. EcoSmart Fire’s ethanol fireplace inserts can be installed virtually anywhere - in walls, cabinets, small spaces, high rise buildings, commercial spaces, indoors and outdoors.
What maintenance is required for ethanol fireplaces?
Clean your EcoSmart Fire unit after you have used 50 liters [13.20 Gal.] of fuel or as soon as you notice black deposits on or near the burner of the ethanol fireplace. Black marks can be removed from the stone, solid surfaces or stainless steel with a mild abrasive washing product such as JIF or similar. It is recommended to test a small area first to ensure the cleaning product chosen is appropriate and will not mark or damage the surface. Burners can be washed as required in hot soapy water (even in your dishwasher) from time to time and the internal mechanics won’t deteriorate like some other brands as all internal parts are stainless steel.
How large of an area will my ethanol fireplace heat?
The heat output of our indoor and outdoor ethanol fireplaces vary based on the model selected. When used indoors, EcoSmart Fire’s ethanol fireplaces comfortably heat between 215 sq feet and 700 sq feet.
What is bioethanol fuel?
Bioethanol (also known as methylated spirits or simply ethanol) is a form of renewable energy. It’s a clear, colourless liquid that’s commonly made from fermenting the sugar and starch components of plant by-products like sugarcane and grain crops.
Why use bioethanol?
Bioethanol, a renewable energy, is the cleanest and most efficient fuel on the market, which means there are no emissions and no soot or ash to clean up.
Are ethanol fireplaces good for the environment?
EcoSmart Fire’s ethanol fireplace burners and fireplace inserts, when paired with our e-NRG bioethanol fuel are clean burning with the only byproduct being heat, steam and carbon dioxide (the same stuff we exhale). Unlike gas fireplace inserts and wood burning fireplace inserts, EcoSmart Fire’s ethanol fireplaces do not produce messy pollutants like soot, smoke, and ash.
