Fireplace Inserts

EcoSmart Fire bioethanol fireplace inserts cost significantly less to install than traditional gas or wood-burning fireplaces because they eliminate structural modifications, gas line installation, and chimney work. Installation focuses on securing the insert in a framework and finishing the surround, a zero-clearance design that removes expensive building work.

The cost advantage comes from simplicity: no venting requirement, no electrical wiring, no combustion air ducts. Installation typically completes in under an hour once the framework is ready, keeping labour costs lower and timelines shorter. Many homeowners invest in professional finishing work, but the fireplace insert itself requires minimal specialist input.

EcoSmart Fire reports up to 70% in cost savings compared to gas fireplaces across the full installation journey. This includes the insert and surrounding build work. The remaining costs reflect design choices: cabinetry finishes, materials, and architectural integration, decisions that would apply regardless of fireplace type.

Once installed, running costs are minimal. A 9-litre fuel refill burns for 8–13 hours depending on heat setting, making it one of the most economical focal point options. Total cost of ownership, including installation and fuel, typically proves competitive with traditional alternatives.

Zero-clearance construction gives a bioethanol fireplace insert genuine freedom at the face: marble, timber, concrete, and custom millwork all sit flush against the unit frame with no side or rear spacing required. The surround becomes a material decision, not a compliance one.

Approved face finishes include honed or book-matched marble, figured timber veneers, poured or board-formed concrete, and bespoke joinery. Tile, plastered masonry, brick, and natural stone work as substrate and typically as finish too, with non-combustible backing behind the cavity (EcoSmart Fire specifies vermiculite board, fibre cement, or steel framing lined with fire board). Matte surfaces like raked plaster or fluted stone read the flame as warm and painterly; reflective finishes like polished marble or blackened steel double the fire visually and throw light deeper into the room.

The only real constraint sits above the unit. EcoSmart Fire's installation guidelines specify a minimum of 600 mm [23.6 in] from the flame for non-combustible mantels or shelves, and at least 1,500 mm [59.1 in] for combustible materials including timber mantels, ceilings, joinery returns, and curtains. Everything beside and behind the firebox is yours to specify.

For retrofit projects, the wall finish can be reworked later without damaging the insert or the surrounding structure, which keeps the surround a live design decision rather than a permanent commitment.

EcoSmart Fire wall-mounted fireplaces are engineered for integration into most wall constructions, though the backing material and clearances matter. Suitable substrates include brick, stone, plastered masonry, fire-rated plasterboard, tile, and concrete. Stud walls work when lined with fire-rated plasterboard and hollow-wall anchors; fabric and wallpaper directly behind the unit must be avoided.

Recessed installations require non-combustible cavity backing, such as vermiculite board, fibre cement, or steel framing lined with fire board, to maintain safe operating temperatures. The Flex Series is purpose-built for architect-led recessed integration and uses specified mounting brackets and spacers to create the necessary air gap for heat distribution.

Installation details vary by model, so the manufacturer's installation manual governs clearances to combustibles and any structural considerations.

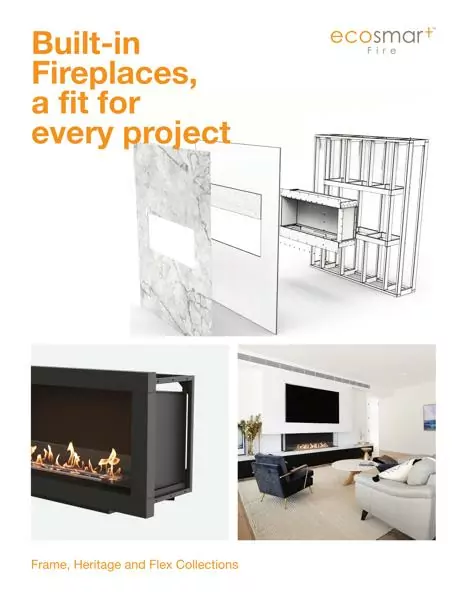

Recessed installation of EcoSmart Fire bioethanol fireplaces follows a straightforward three-phase process.

Construct your wall cavity to the specified cut-out dimensions, slide the appliance into the opening so the base sits securely on 50 × 100 mm [2×4 in] framing, then secure it via the mounting hole flanges using a power drill and screwdriver. Remove the transport brackets, complete your wall panelling around the insert, and the fireplace is ready for operation: no venting, no gas line, no electrician required.

The absence of utility connections is what makes recessed installation possible in spaces where traditional fireplaces cannot go: interior feature walls, under-window niches, between built-in cabinetry.

Framing above the appliance must be self-supporting, and the toughened glass windscreen slides into place before the decorative charcoal spreads around the appliance tray. Most installations are completed within an hour.

EcoSmart Fire trade specialists are available to review your design drawings at no cost and provide technical support throughout installation. Compliance with UL 1370 and EN 16647 standards ensures your installation meets all relevant safety requirements.

Ideal mounting height for EcoSmart Fire wall-mounted bioethanol fireplaces depends on how you want to experience the flame rather than a single fixed measurement. Position the burner at eye level when seated in your primary viewing area, typically 1,200–1,400 mm [47–55 in] from the finished floor, so the flame draws your gaze naturally as you relax.

Viewing angle is the real guide. If you'll stand in front of it, aim higher. If you're watching from a dining table, position lower. The beauty of bioethanol fireplaces is that ventless installation frees you from chimney positioning, ceiling-height constraints, or ventilation paths. Design comfort first, then build clearance into the architecture around it.

Maintain overhead clearance of 1,500 mm [59.1 in] from the flame to any combustible material (ceilings, shelving, curtains). Non-combustible mantels can sit as close as 600 mm [23.6 in]. These aren't rigid rules but sensible margins that protect finishes and ensure safe operation.

Your placement becomes a design choice driven by sightline and room proportion, not a compliance checklist.

EcoSmart Fire bioethanol fireplaces feature true zero-clearance design. At the back and sides, the appliance frame installs directly into wood or metal stud walls with no spacing required between the unit and surrounding combustible materials.

For mantels and surrounds fitted above or beside the unit, specific vertical clearance distances apply. These differ depending on whether the material is combustible or non-combustible; your model's support page provides the exact dimensions and diagrams for your configuration.

Each model specifies a minimum room volume for adequate ventilation. This is an air quality requirement rather than a physical clearance distance. Your product specifications or installer will confirm the threshold for your room.

Before installation, verify your wall cavity dimensions against the product's cut-out specifications to ensure tolerances align.

Three zero-clearance bioethanol series, three distinct design intents. Flex is the format-flexible range for bespoke and commercial builds, Heritage reimagines the traditional hearth for compact and high-rise settings, and Frame delivers low-profile linear flame for contemporary and retrofit interiors.

Where they diverge:

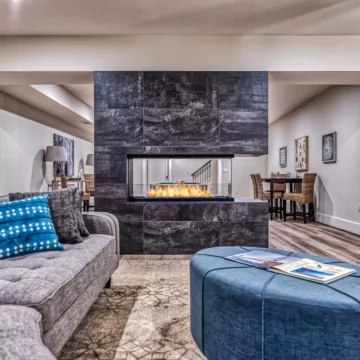

• Flex offers the widest format choice: 12 single-sided sizes from 378 to 4,030 mm [14.9 to 158.7 in] viewing width, available across eight configurations (single-sided, left corner, right corner, bay, double-sided, peninsula, island, and bench). The viewing area is all live flame. Select models include an optional decorative box and copper log set. Single-sided models share a 365 mm [14.4 in] depth.

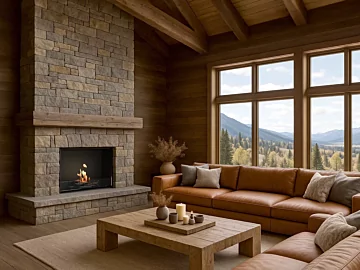

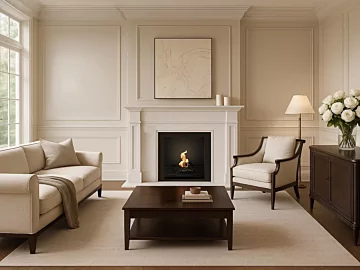

• Heritage is the single-sided traditionalist. Three sizes, 860 to 1,624 mm [33.9 to 63.9 in] wide, with the tallest proportions and deepest 539 mm [21.2 in] profile of the three. A SECC steel grate and toughened glass fire screen come standard, creating the classic log-fire read inside a modern firebox. Zero-clearance, ventless installation makes it suited to compact living spaces and high-rise buildings.

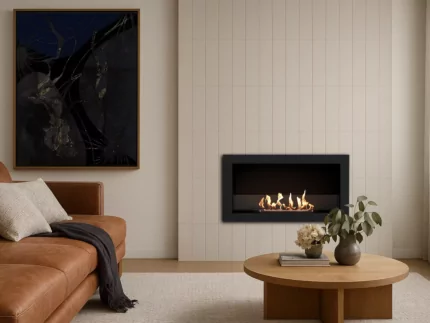

• Frame is the shallowest and lowest-slung, at 363 to 403 mm [14.3 to 15.9 in] deep and 598 mm [23.5 in] high. Five single-sided sizes, toughened low-iron glass for clearer flame, and a design that lets wall finishes be updated without disturbing the insert.

Flex for design freedom. Heritage for traditional proportions without the infrastructure. Frame for linear, low-profile statements and renovations.

Minimum footprints by range:

• Frame (surface-mounted, zero clearance): 746 mm x 798 mm, 403 mm deep
• Flex (recessed cavity): 488 mm wide x 730 mm tall, 365 mm deep
• Heritage (hearth alcove): 860 mm wide x 910 mm tall, 539 mm deep

Yes, EcoSmart Fire fireplace inserts are safe to use when installed correctly and operated according to manufacturer guidelines. Inserts are engineered with zero-clearance construction, with combustion containment built directly into the frame, and carry certifications across major markets: UL-listed to UL 1370 (USA), EN 16647 certified (Europe/UK), and compliant with Australian safety mandates.

Every component is engineered for safety. Burners are Grade 304 stainless steel. Glass is toughened, low-iron, and withstands heat exposure. A dedicated filling point, safe shut-off mechanism, and safety markings eliminate handling risk. The combustion system burns cleanly, producing heat, water vapour, and carbon dioxide; each output is managed safely within the minimum room volume requirements for each configuration.

Proper operation requires attention to ventilation. Each model has a minimum room volume requirement (ranging from 40 to 345 m³ depending on configuration) to ensure adequate oxygen and prevent indoor air quality concerns. Installation should follow the trade guidance provided, and the burner tray is mandatory for indoor use. The design reflects 20+ years of research and third-party safety validation. Professional installation is recommended to confirm correct placement and ventilation setup, ensuring reliable performance.

A zero-clearance ethanol fireplace insert is a self-contained bioethanol fire unit designed to drop into a wall cavity or an existing hearth, delivering a real flame without a chimney, flue, gas line or electrical connection. It burns liquid bioethanol fuel cleanly, producing only heat, water vapour and a small amount of CO2, with no smoke, soot, sparks or ash. That clean combustion is what sets it apart from a wood or gas insert, and what allows the unit to sit directly against timber or metal studs.

EcoSmart Fire builds ethanol inserts across three ranges, each suited to a different architectural setting:

• Frame: recessed wall inserts for indoor or outdoor single-sided viewing, built around a Grade 304 stainless steel burner and toughened glass screen.
• Heritage: a contemporary take on the traditional hearth and firebox, designed for classic fireplace openings.
• Grate: drop-in bioethanol grates that convert an existing wood-burning fireplace into a clean-burning fire, suitable for retrofit projects.

All ranges are safety-certified and designed for use in adequately ventilated indoor and outdoor spaces.
